A couple years ago I wanted something different as a gift for my wife, Karen. She enjoys exploring outdoors and keeps a journal with the locations of wild flowers she finds on her walks. I thought she might like a Global Positioning System (GPS) unit. With a GPS you can record your location to within a few feet. As it turns out, the Garmin GPS unit is one of her favorite gifts. Karen memorized the instruction book and within a day was exploring the backwoods of Devil’s Lake State Park in southern Wisconsin.

She especially liked the GPS unit because there are many places she wanted to go where there are no trails. Now when she starts a walk, she can click the unit and record where the car is parked. She can also enter coordinates for points she wants to travel to. As she hikes in the woods, the GPS unit keeps track of where she is in relation to any of the points she’s interested in. The unit will tell her if:

  • she’s going in the right direction

  • how far away the point of interest is

  • how fast she is moving toward it.

All that information is displayed on a screen that fits in the palm of her hand.



So how does GPS work? The US Air Force maintains a "constellation" of at least twenty-four GPS satellites that orbit the earth. The satellites are like the stars that people have navigated with for ages. The only difference is that the GPS "stars" send out radio transmissions that an antenna in your GPS unit picks up. If the GPS unit can get a signal from four satellites, it will calculate where it is by using an internal clock and simple geometry. Atmospheric interference, mathematical rounding, small errors in the satellites' atomic clocks and other factors introduce faults in the location estimate. An error of one billionth of a second in the clock translates into about a one-foot error on the ground. The more satellites a GPS unit gets a signal from, the smaller that error is likely to be. A unit with a differential correction feature called "WAAS" can be accurate to within about 10-16 feet on a fairly consistent basis.

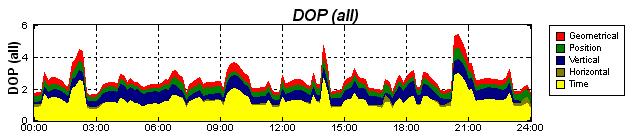

To check her GPS unit’s accuracy, Karen switches screens (by clicking a button), and it shows her how many satellites it can "see" and what the estimated precision error is at that moment. The location of each satellite in relation to the others and their geometry relative to the GPS unit affects the Dilution of Precision (DOP). DOP values change through the day as the satellites move in and out of view as shown in the above sample chart for a specific day/location. The graph was produced by Trimble's GPS Planning Software. The lower the DOP value, the better your GPS location calculation is likely to be. Dense tree foliage, obstructions like hills and buildings or holding the GPS unit too close to your body can also block signals and reduce accuracy.

Although Karen's GPS seldom shows an estimated error greater than 60 feet, she is realistic about her unit’s accuracy. She wouldn’t pretend to be a surveyor with it. If she were looking for a section corner, den tree, deer stand, patch of flowers or our parked car, though, she can come relatively close.

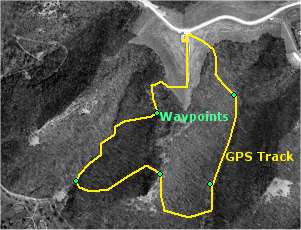

The main difference between recreational grade GPS units is whether or not they display a base map. The less expensive units like Karen's basic eTrex costing about $100 have no built-in maps but are still very handy. They keep track of where you go with a dotted line on the screen. The screen will also show waypoints, which are ground locations that you click on as you travel or which you enter in advance as latitude/longitude coordinates. More advanced units costing $200 to $500 have built-in maps showing roads and streets. Some units (like my Magellan on the left) display topographic elevation lines that are downloaded from companion CDs such as Magellan's MapSend or Garmin's MapSource products.

If you are looking for a GPS unit, get one with the Wide Area Augmentation System (WAAS) feature. WAAS GPS units track a couple extra geostationary satellites that send out correction signals, enabling accuracy to around 10 to 16 feet under ideal conditions. Garmin, Magellan and Lowrance are some of the more popular GPS brands featuring WAAS.

Recently, I started using a Garmin GPS76S for work (purchased for about $360 from Amazon). The unit has built-in maps and a larger display like the Magellan. It also includes an electronic compass (which works with the unit held horizontally) and a built-in barometric altimeter to improve the accuracy of elevation readings.

The GPS76S is a great unit, but the extras do shorten battery life. Karen's little Garmin eTrex is good for a couple days of hiking, rated at about 20 hours on two rechargeable AA batteries. My Magellan Meridian Gold unit is rated at 14 hours and hasn't had any trouble lasting an eight-hour field day. (The only complaint I have about the Magellan is that the power button sticks out too far, frequently causing the unit to be unintentionally turned off.) The Garmin GPS76S is rated at 10 hours with 2 AA batteries, however it might not last three hours on some cold winter days. All the bells and whistles cause a power drain, meaning you better have more batteries in your pocket.

If you don't really need the extra features like an electronic compass and altimeter, the longer battery life found in simpler units could more than outweigh the prestige of having a top-of-the-line unit. You would also be wise to carry a conventional magnetic compass and not rely entirely on your GPS unit in field situations.

If you want to get the most out of a GPS unit, use it with a computer-mapping program. Karen and I use USA PhotoMaps and OziExplorer for 2D maps or 3DEM for 3D views. They are available for free download from the Internet. Delorme's Topo USA, which costs about $100, is another excellent program to use with your GPS Unit. The programs communicate with the GPS unit via a cable that connects it to the computer. They download the tracks and waypoints from the GPS unit and draw them on a map.

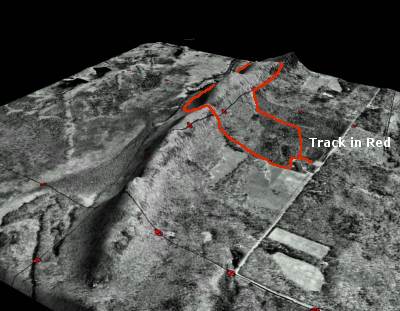

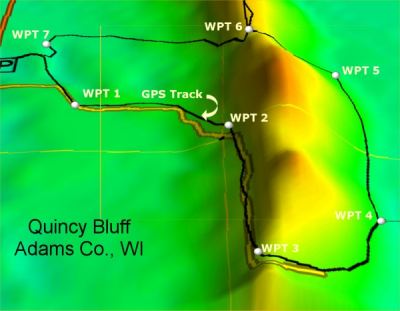

The images above show the track of a hike at Wisconsin's Quincy Bluff, a 200-foot high sandstone ridge surrounded by flat lowlands. To help the ridge stand out, a 250% vertical exaggeration was applied in 3DEM.

If you are debating about getting a GPS unit, don’t hesitate. Considering the low price and reasonable accuracy, anyone who wants the freedom and security of knowing where they are shouldn’t be without one.




You might wonder, "Which is the right GPS unit for the job?" There are three general grades of GPS units: recreational grade, mapping or resource grade and survey grade. See the GPS Comparisons to help choose the right tool for you.
